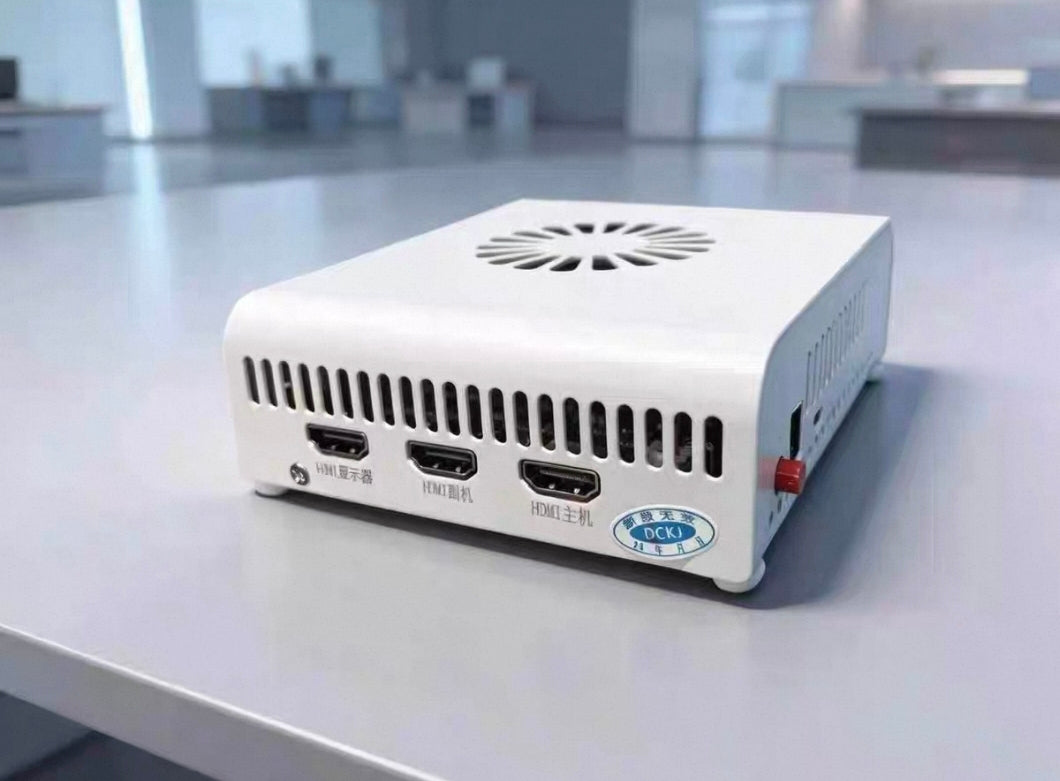

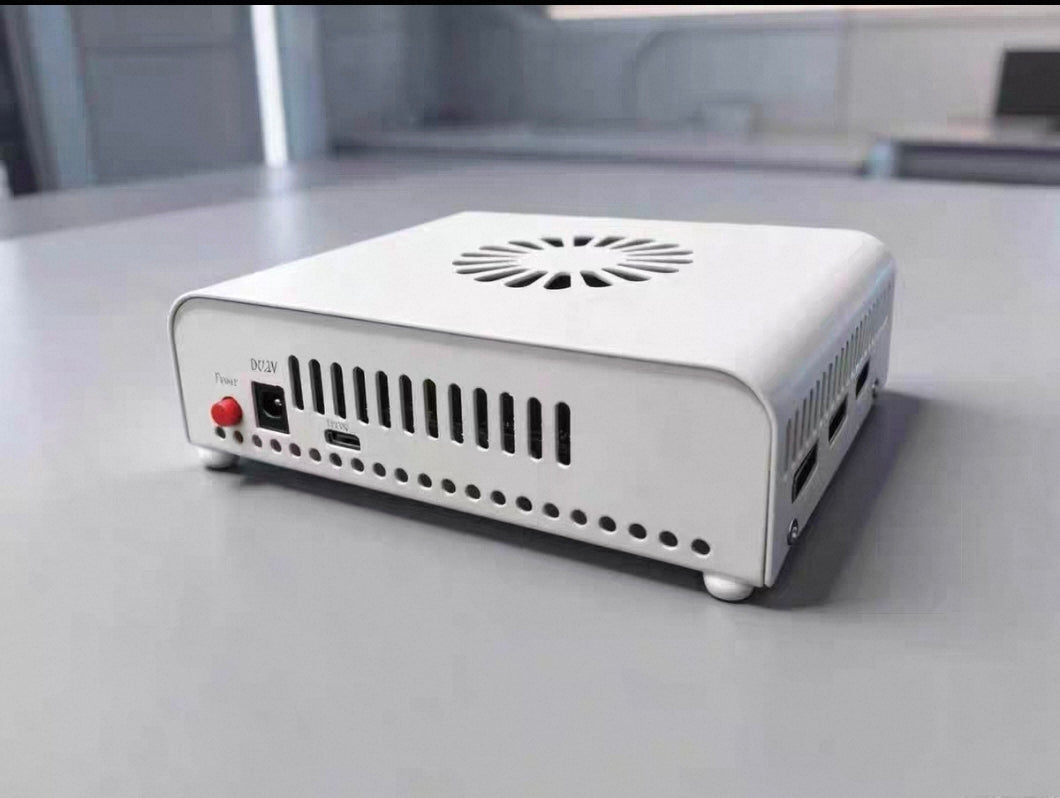

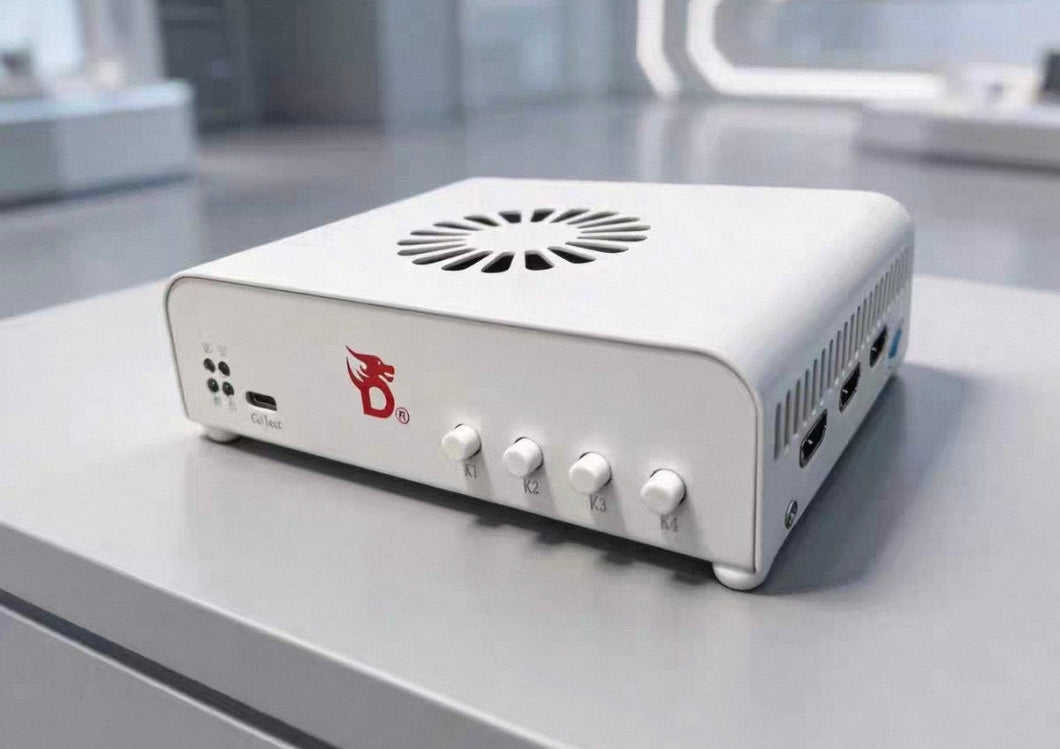

DICHEN DC505 4K Fuser

Next-Generation 4K Fuser with Video Capture & EDID Injection

The DICHEN DC505 is the next-generation upgrade to the DC500, designed for high-refresh-rate display fusion, advanced signal compatibility, and professional video applications.

In addition to the proven 4K fusion capabilities of the DC500, the DC505 introduces two major new features:

* Integrated Video Capture Card

* Advanced EDID Injection & Editing

These enhancements make the DC505 an all-in-one solution for display fusion, live streaming, video capture, industrial imaging, and specialized display compatibility applications.

Video Input Specifications

DisplayPort Input

Supports ultra-high refresh rate signals up to:

* 1920×1080 @ 500Hz

* 2560×1440 @ 320Hz

* 3840×2160 @ 144Hz

Compatible with:

* Desktop PCs

* Laptops

* Graphics cards from major brands

* Most gaming and professional monitors

Notes:

* Most displays can achieve 1080p500, 1440p320, or 4K144.

* A small number of monitors may be limited to:

- 1080p480

- 1440p240

- 4K120

HDMI Input

Supports high-bandwidth HDMI signals up to:

* 1920×1080 @ 550Hz

* 2560×1440 @ 360Hz

* 3840×2160 @ 160Hz

Typical real-world performance:

* 1080p500

* 1440p320

* 4K144

Compatibility Highlights:

* No screen flickering with NVIDIA RTX 50 Series GPUs.

 * Fully compatible with modern laptops.

* Certain RTX 5070 Ti and higher GPUs, as well as some newer laptops, may require switching to 12G×4 mode.

New Feature: Integrated Video Capture

The DC505 includes a built-in video capture function, eliminating the need for a separate capture card in many applications.

Capture Performance

* Up to 1080p @ 60Hz capture

* Ultra-low latency operation

* Simultaneous video and audio capture

Flexible Capture Modes

Users can:

* Capture the source device directly

* Capture the fused display output

* Stream and record while using display fusion simultaneously

This makes the DC505 ideal for:

* Live streaming

* Content creation

* OBS workflows

* Gaming setups

* Professional demonstrations

New Feature: EDID Injection & Editing (Mode C)

The DC505 introduces advanced EDID management capabilities for professional users and specialized equipment environments.

EDID Injection

Users can inject virtually any compatible EDID profile to improve compatibility between source devices and displays.

EDID Editing

The DC505 can read, modify, and write EDID data, including:

* Display ID

* Serial Number

* Monitor Name

* Display Model Information

* Manufacturer Information

* Other EDID parameters

After modification, the customized EDID can be written back and applied to the system.

Typical Applications

* Display compatibility optimization

* Industrial equipment integration

* Medical imaging systems

* Signal testing and validation

* Custom monitor emulation

* Professional AV environments

EDID Operating Modes

Mode A – Adaptive Timing EDID

Automatically adjusts timing parameters for maximum compatibility.

Benefits:

* Automatic signal optimization

* Broad device compatibility

* Plug-and-play operation

Note: Some early production units may display Mode A and Mode B labels in reverse. This can be corrected through future firmware updates.

Mode B – Native Monitor EDID

Uses the monitor’s original EDID information.

Benefits:

* Preserves factory display parameters

* Maintains native monitor behavior

* Ideal for users requiring original display characteristics

Mode C – Custom EDID Injection

Provides complete EDID customization.

Features:

* Custom EDID loading

* EDID editing and writing

* Display identity emulation

* Enhanced compatibility control

Supported Devices

The DC505 currently supports a wide range of devices, including:

* Desktop PCs

* Laptops

* Industrial Cameras

* Wireless Casting Devices

* Microscopes

* Medical Equipment

Additional device compatibility continues to be expanded through ongoing development and firmware updates.

Key Upgrades Over DC500

Compared with the previous-generation DC500, the DC505 adds:

✔ Integrated Video Capture Card

✔ Simultaneous Audio & Video Capture

✔ Capture While Using Display Fusion

✔ Advanced EDID Injection

✔ EDID Editing & Customization

✔ Enhanced Device Compatibility

✔ Broader Industrial and Professional Application Support

The DICHEN DC505 is more than a 4K fuser—it is a comprehensive display fusion, capture, and EDID management platform built for demanding gaming, professional AV, industrial, and imaging applications.
