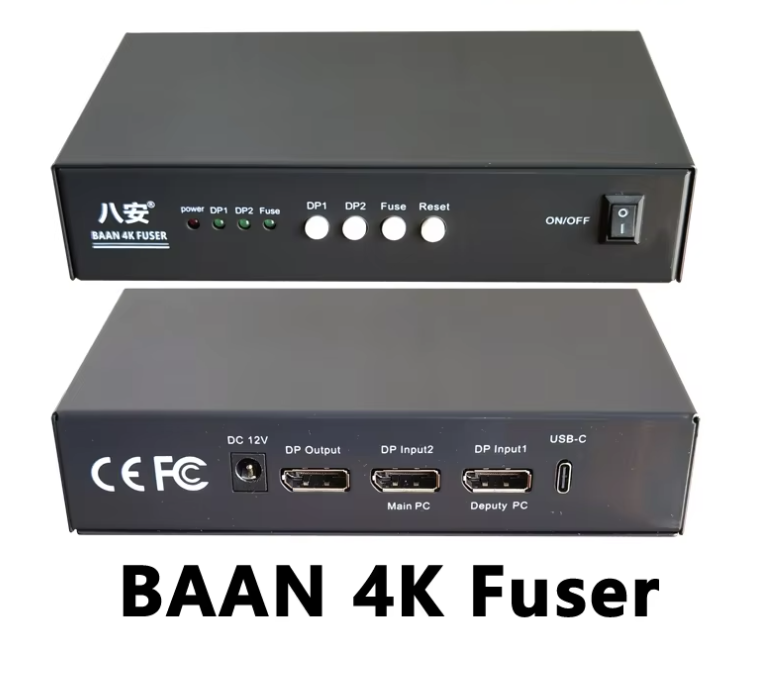

4K DP Fusion Device – Baan 7th Generation | RGB 4K144 / 2K240 / 1080P480Hz | Full DP 1.4 Integration

Product Overview

The Baan 7th Generation DP Fusion Device is a high-performance DisplayPort signal integration solution designed for ultra-high refresh rate output, seamless switching, and stable multi-source signal management.

Built on a full DP 1.4 architecture, it delivers smooth high-resolution performance with intelligent signal adaptation and zero-disruption switching—ideal for advanced display environments and multi-device setups.

Key Features

Dual Input, Single Output Design

• 2 × DisplayPort inputs
• 1 × DisplayPort output
• Efficient signal routing and device integration

Ultra High Refresh Rate Support

Optimized for high-performance display systems:

• 4K (3840×2160): 60Hz / 120Hz / 144Hz
• 2K (2560×1440): 144Hz / 240Hz / 260Hz
• 1080P (1920×1080): 240Hz / 360Hz / 400Hz / 480Hz / 500Hz

👉 Smooth, high-frame-rate visual output across multiple resolutions

Full DP 1.4 Signal Architecture

• Interface: DisplayPort 1.4
• Color Format: YCbCr 4:2:2
• Color Depth: 8 bpc / 8-bit

Ensures consistent signal quality and reliable transmission

EDID Auto-Adaptation

• Automatically reads monitor parameters from the graphics system
• No manual configuration required
• Seamless compatibility across different display setups

Seamless Switching Performance

• No signal scaling between devices
• Smooth switching with no flickering
• No black screen interruption

👉 Provides a stable and uninterrupted viewing experience

Balanced Performance Across Devices

• Full DP interface ensures equal performance
• No degradation between primary and secondary inputs

Performance Highlights

✔ Supports up to 4K 144Hz / 2K 240Hz / 1080P 480Hz+
✔ Stable ultra-high refresh rate output
✔ Zero-disruption signal switching
✔ Intelligent EDID handling
✔ Full DP 1.4 signal integrity

Compatibility Notes

• Custom resolutions are not supported
• 3440 × 1440 resolution is not supported
• Maximum refresh rate may vary depending on system configuration (Windows 10 / Windows 11)

Physical Specifications

• Dimensions: 168 × 98 × 40 mm
• Weight: Approx. 1 kg per unit

Application Scenarios

• Multi-display integration setups
• High refresh rate display environments
• Signal routing and synchronization
• Hardware testing and system configuration

Product Advantages

✔ High-performance DP 1.4 architecture
✔ Ultra-smooth high refresh rate support
✔ Plug-and-play with automatic configuration
✔ Stable, flicker-free switching
✔ Designed for advanced hardware environments

Important Notice

This product is a hardware-only device intended for display integration, signal processing, and technical applications.

No software or application-specific tools are included. Users are responsible for proper setup and ensuring compliance with applicable regulations.
